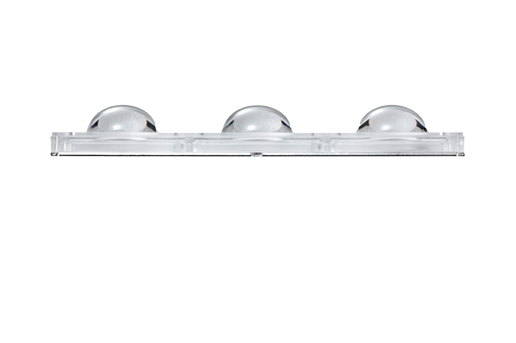

LH 31 S

Satiné modular

Indoor Lighting Unit

Optimized for use in interior spaces and high bay illumination

  • Typical ratio of 1.2 for luminaire spacing to mounting height with symmetrical radiation
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Photometric Files
Data Sheet

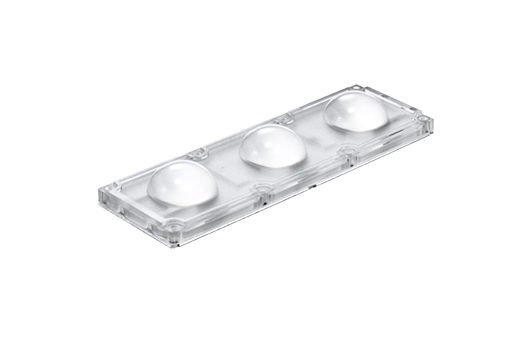

Lens optics

Assembly structure

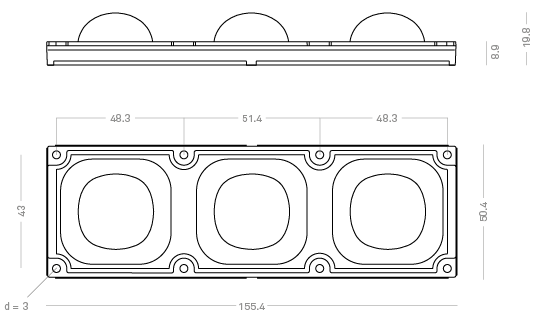

Cross section

Radiation characteristics

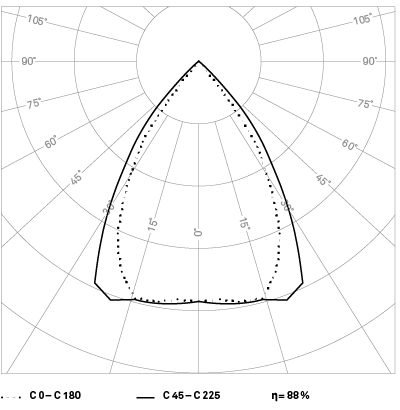

Intensity distribution

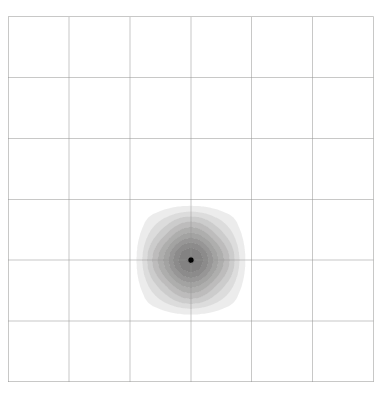

Illuminance distribution

Variants

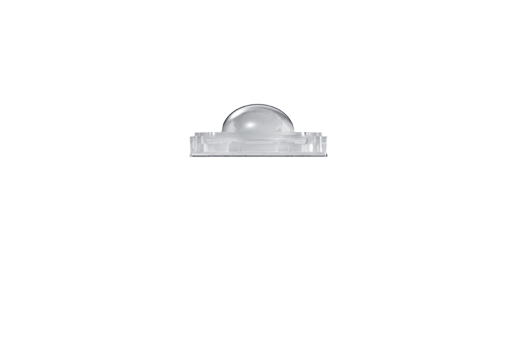

Variant 01: Side cable

Article no.: VF 35V
Rated IP67

Variant 02: Cable underneath

Article no.: see table + variant
IP67 rating in combination with mounting profile

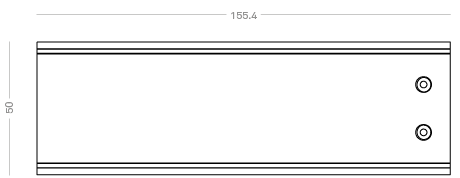

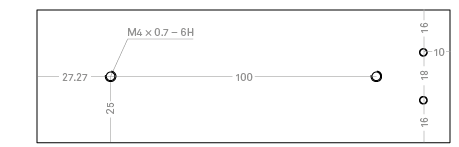

Mounting profile (optional)

Suitable for lighting units of variants 01 and 02

3 mounting profile

Article. 40 20000 10
