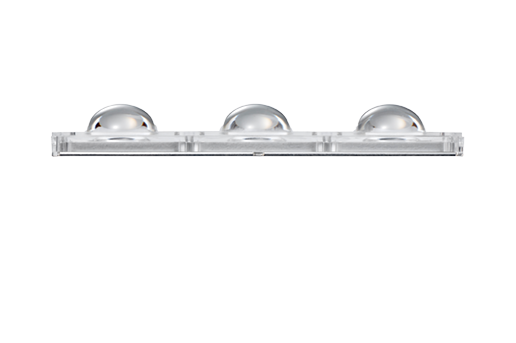

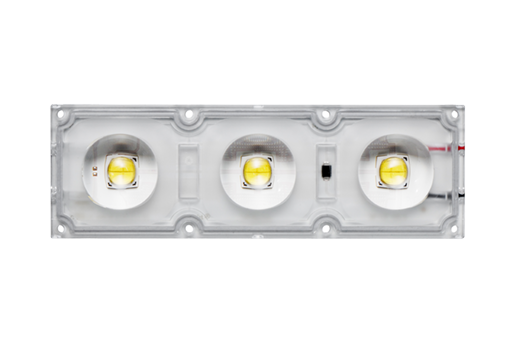

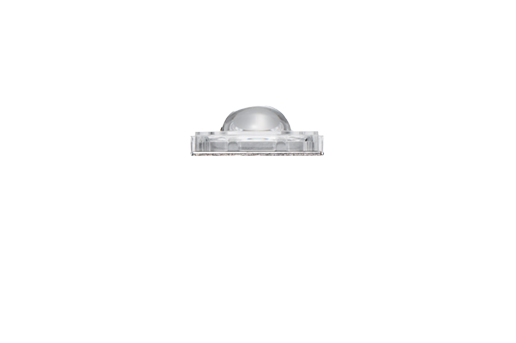

LH 31

modular

Indoor Lighting Unit

Optimized for use in interior spaces and high bay illumination

  • Typical ratio of 1.2 for luminaire spacing to mounting height with symmetrical radiation
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Downloads

Photometric files
Data Sheet

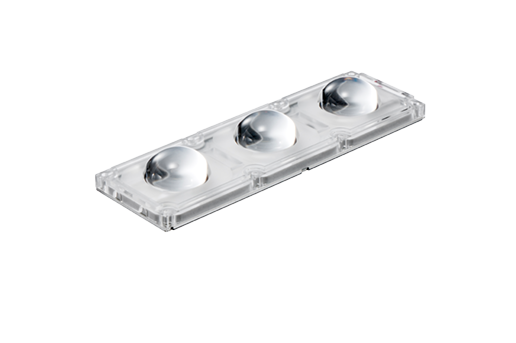

Lens optics

Assembly structure

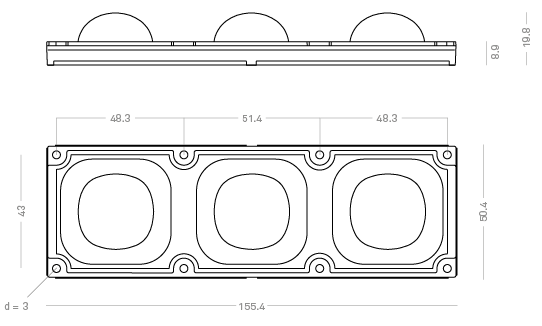

Cross section

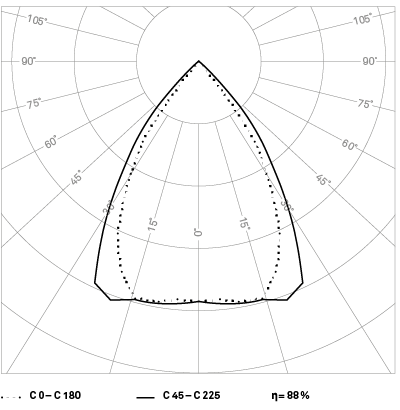

Radiation characteristics

Intensity distribution

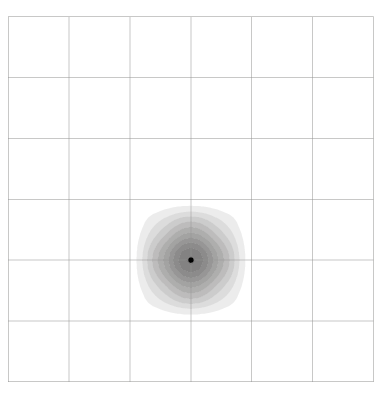

Illuminance distribution

Variants

Variant 01: Power outlet on the side

Article no.: VF 35V
Rated IP67

Variante 02: Power outlet underneath

Article no.: see table below + Variant
IP67 rating in combination with mounting profile

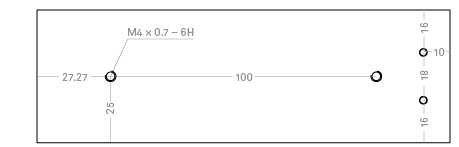

Mounting profile (optional)

Can be used for lighting units of variant 01 and 02

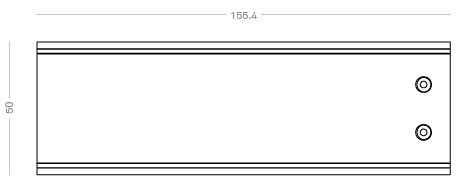

3 mounting profile

Article no. 40 20000 10
