LS 34

modular

Street lighting unit

Optimized for the ME3 to ME6-classes of street lighting in accordance with EN 13201

  • Typical ratio of 4.25 for pole distance to mounting height
  • Numerous options for attaching and configuring
  • Power rating up to 600 mA, dimmable
  • Highest system efficiency
  • Sustainable and future-oriented
  • Multichip technology
  • ESD-protection
  • CRI 70 min

Lens optics

Assembly structure

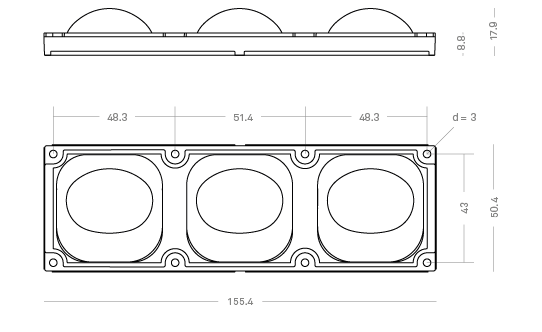

Cross section


Radiation characteristics

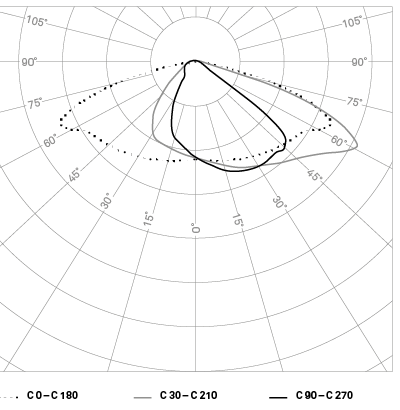

Intensity distribution

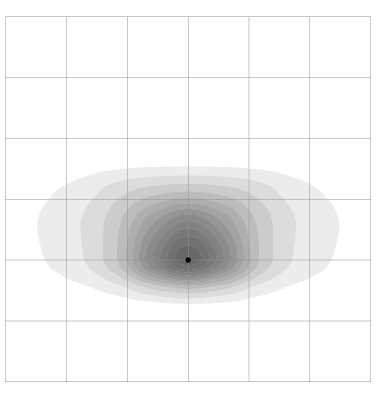

Illuminance distribution

Variants

Variant 01: Side cable

Article no.: VF 35V
Rated IP67

Variant 02: Cable underneath

Article no.: See table + variant
Rated IP67 in combination with mounting profile

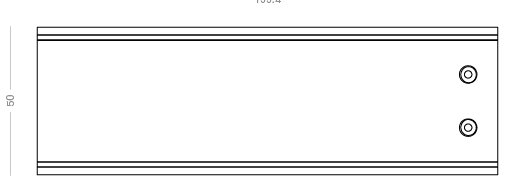

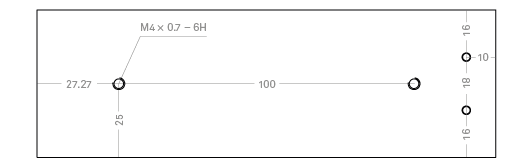

Mounting profile (optional)

Suitable for lighting units of variants 01 and 02

3 mounting profile

Article no. 40 20000 10
